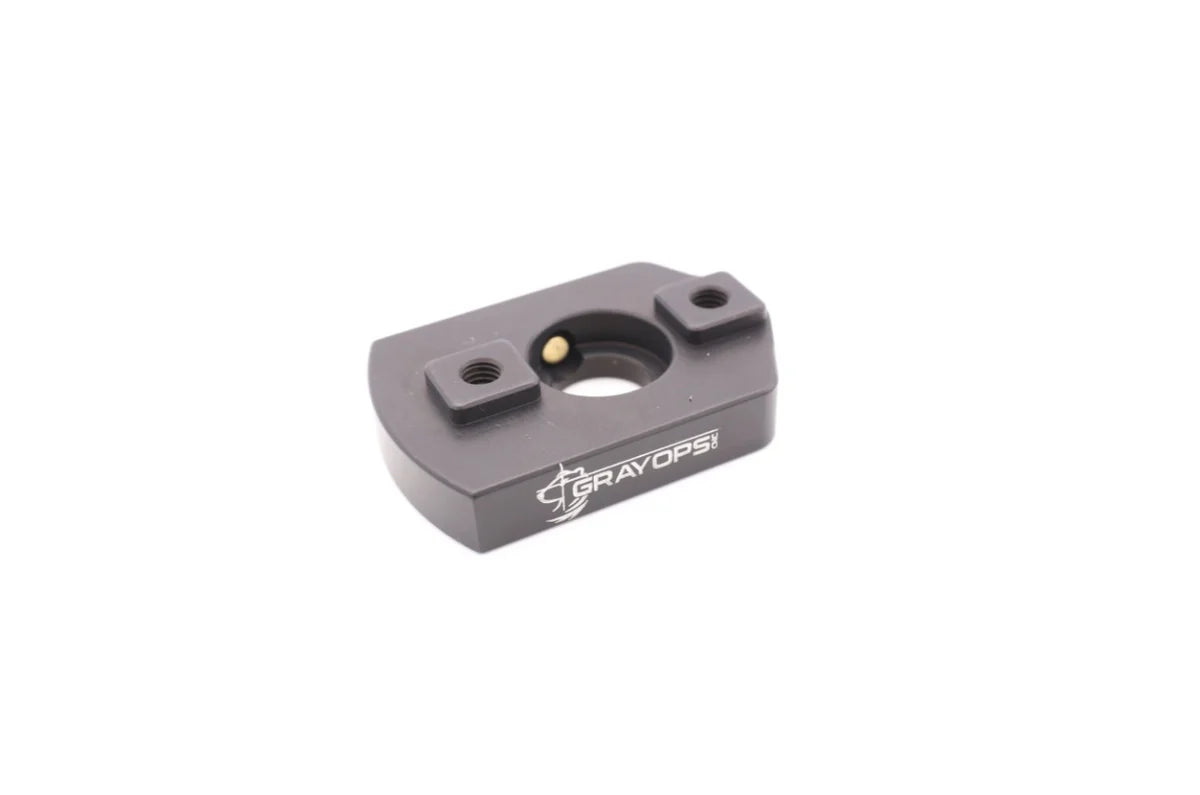

Ckye-Pod Adapter for Arca Clamp

PURPOSE:

• Replaces Ckye-Pod clamp making it compatible with any ARMS17 pattern clamp such as Atlas or our very own Gray Ops CNC Throw Lever Arca Clamp

FEATURES:

• Machined from 6061 Aluminum
• Hard black anodizing
• Includes shorter brass tipped panning set screw
• Adds 0.3125” in height
• Hole machined on bottom to accept the “pan-lock” some versions of Ckye Pod have

Installation:

• Remove existing clamp by loosening set screw on back of bipod
• Pull the clamp off the bipod and save the pull stud and wave washer
• Install the wave washer and pull stud into adapter
• Re-install adapter onto bipod by tightening the set screw on the bipod
• Make sure not to overtighten the pan-lock brass tipped set screw (very minimal pressure needed)
• Install Atlas compatible arca clamp

NOTE:

Adapter will not work with the Ckye Pod HD
